Daily rates ¥20,000 |
|
|
This is a "focus assist system" that automatically measures distance using an infrared sensor. The interface unit graphs the depth of focus and displays it on the monitor. Equipped with distance measurement, manual assist, and autofocus. * "Preston HU4" is required separately. |

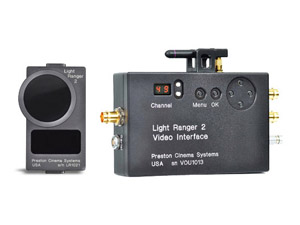

| LP2 - Light Ranger 2 | The LR2 sensor has a 18° field of view for mid to long focal length lenses. |
|---|
| Operating Range | 0.3 〜 12 m |
|---|---|
| Angle of view | Horizontal 18°/ Vertical 3° |
| Power | 12-32 VDC |
| Dimensions | 83 x 140 x 26 mm (WxHxD) |
| Weight | 600 g |
| Video Interface Unit | Industry-first focus assist system that overlays graphics onto a focus puller’s monitor. |
|---|
| Power | 12-32 VDC |
|---|---|
| Dimensions | 132 x 87 x 36 mm (WxHxD) |
| Weight | 390 g |
| Video Input/Output | IN : HD-SDI x1, OUT: HD-SDI x2 |
| LP2W - Light Ranger 2-W | The LR2W sensor has a 50° field of view sensor for short to mid-focal length lenses. |
|---|
| Daily rates | ¥ 8,000 |
|---|
| Operating Range | 0.3 〜 12 m |
|
|
|---|---|---|---|
| Angle of view | Horizontal 50°/ Vertical 5.1° | ||
| Power | 12-32 VDC | ||
| Dimensions | 100 x 70 x 64 mm (WxHxD) | ||
| Weight | 450 g |
